SEEN design elements are directly arranged on the lamination foil used for PV module assembly. Elements are freely selectable in materiality, shape, size, and placement on the lamination foil.
SEEN Elements

SEEN design elements are directly arranged on the lamination foil used for PV module assembly. Elements are freely selectable in materiality, shape, size, and placement on the lamination foil. Credits: SEEN AG.

SEEN AG
  • Kronbergstrasse 11
    9104 Waldstatt
    Switzerland
  • Virginie Le Caër
    Director at Esquisse Solaire Sàrl, a company based in Bussigny, active in the research, development, and application of innovative BIPV products, and supporting SEEN AG in the deployment and integration to solar facades of SEEN Elements.
  • v.lecaer@esquisse-solaire.ch
  • +41 79 936 96 20
  • n/a
Technical information
  • Specific power
    up to 200 Wp/m², depending on module’s surface coverage by SEEN Elements.
  • Laminating polymer/customization
    According to the client’s specific pattern, custom-size elements (dots, squares, lines, or customized forms) are individually placed on a PVB or EVA foil.
  • Color/materiality
    Metalized elements made of aluminum, aluminum semi-reflective, titanium or titanium nitride.
    Optional angular color-shifting effect (blue-green or red-yellow). 3D effect depending on the selected metal coating
  • Dimensions
    Custom made, up to 3.210 mm in width, no length limitation.
  • Lamination/assembly of solar modules
    Manufacturer’s standard lamination process,
    Applicable to crystalline, thin-film PV modules and dummy elements.
  • PV performance
    Linearly dependent on the PV cells surface coverage, e.g. approx. 95% of the standard PV module performance with a covered area of 5%, approx. 90% of the standard performance for a 10% coverage and so on.
Custom-made BIPV module designed with SEEN Elements
Module

PV module assembled with black crystalline cells and SEEN elements: small metallic shiny dots with titanium nitride coating and larger red-yellow color-shifting dots. A 10% partial occultation of the PV cells by the design elements reduces the electricity production by about 10%. Credits: SEEN AG.

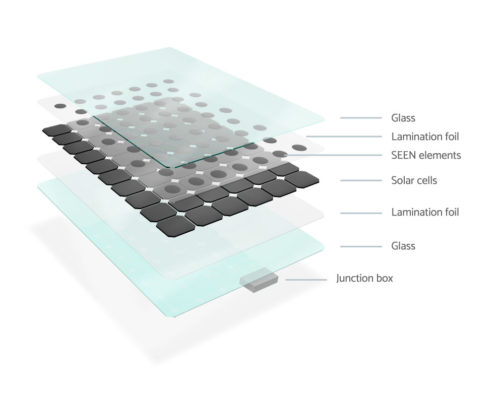

Custom-made decorated BIPV module layers
Assembly

Stratigraphy of a glass-glass crystalline photovoltaic module assembled with SEEN elements. Credits: SEEN AG.
